A modular racing pedal set for sim racers, with a Load Cell brake sensor that measures pressure for precise braking. It is compatible with PS5, PS4, Xbox Series and Xbox One when used with compatible Thrustmaster Force Feedback racing wheel bases, and with racing wheel bases on PC.
Key Features
-
Load Cell Brake: Measures brake pressure with a capacity of 220 lb / 100 kg and 24-bit resolution.
-
Hall Effect Sensors: Accelerator and clutch pedals use H.E.A.R.T sensors.
-

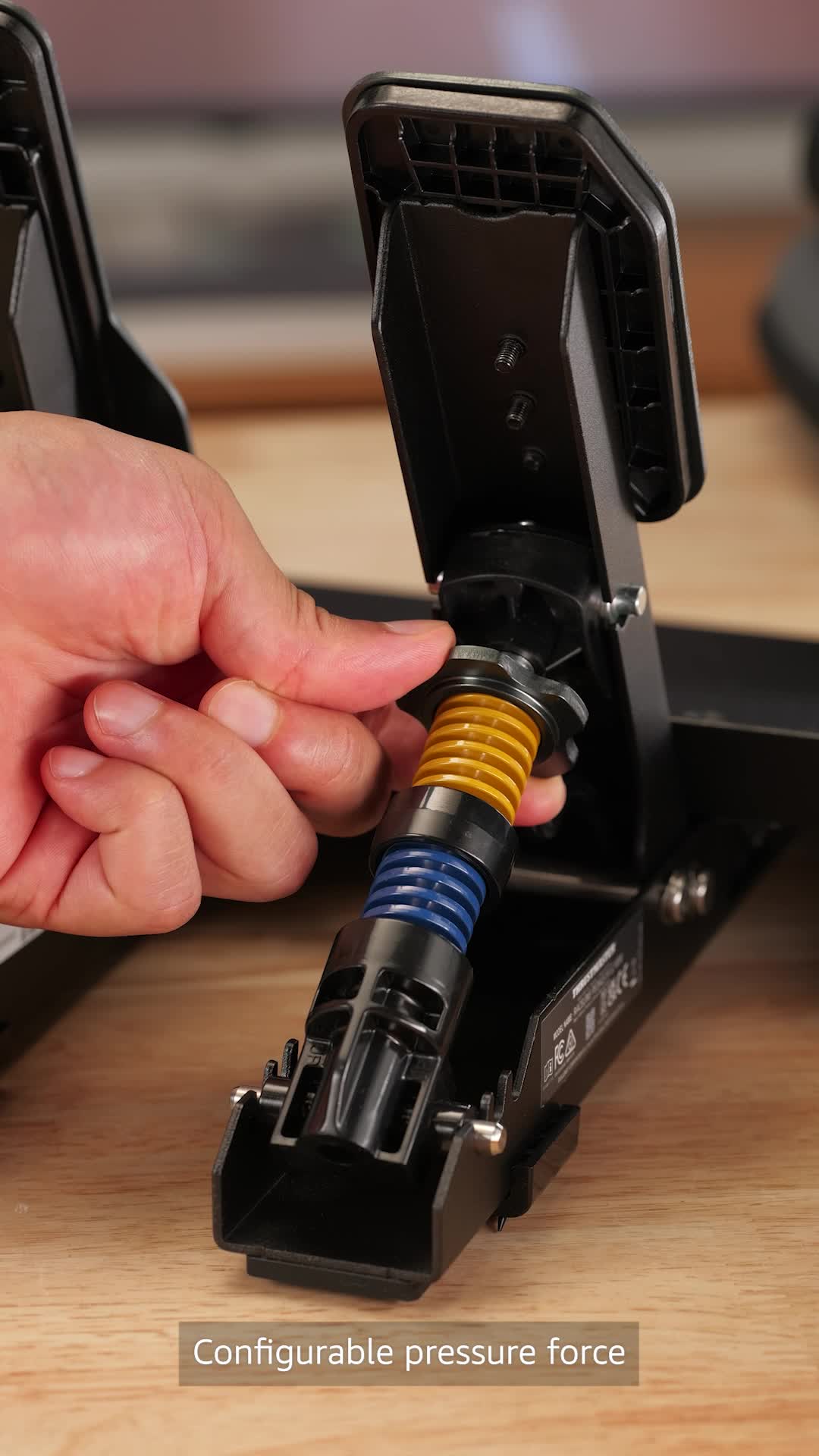

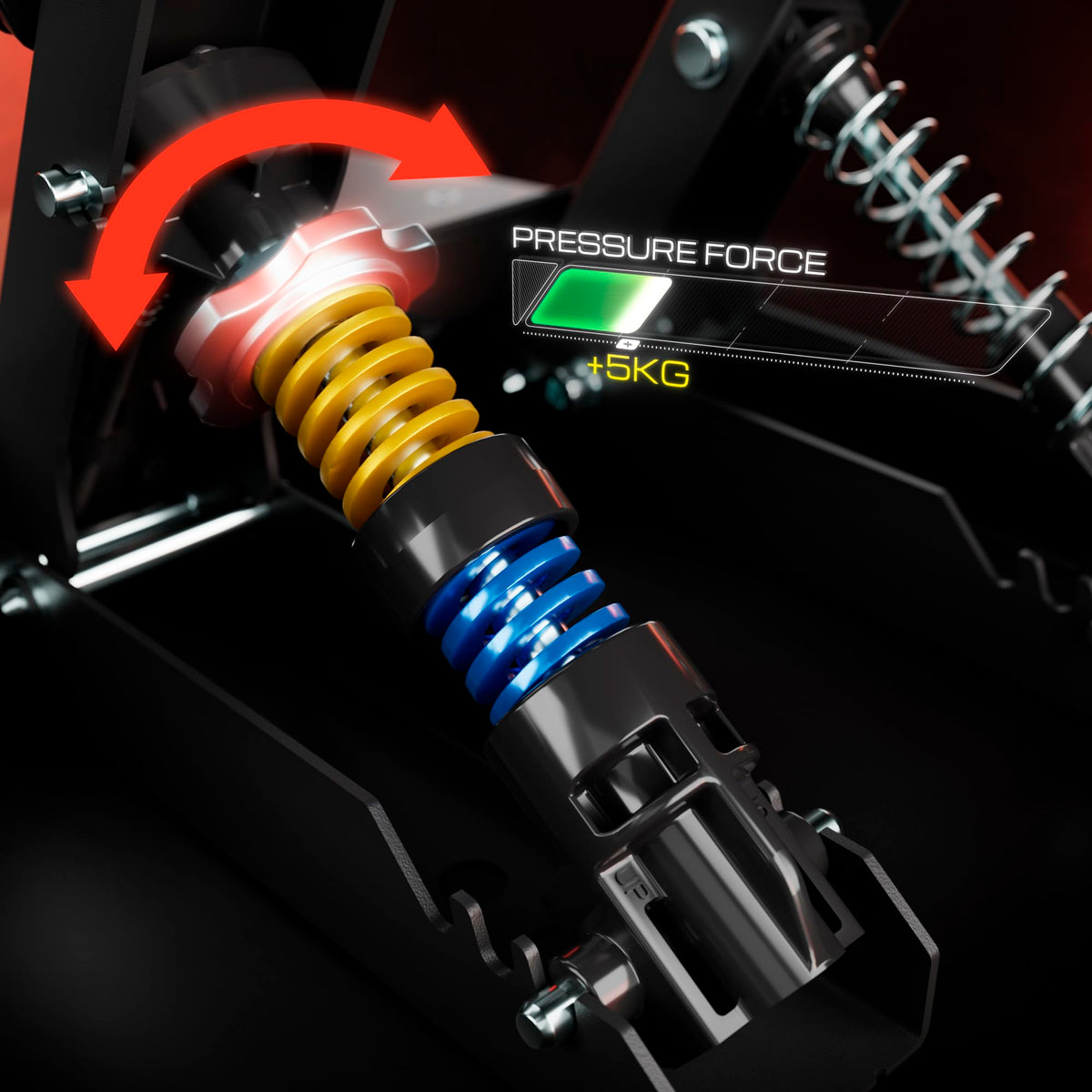

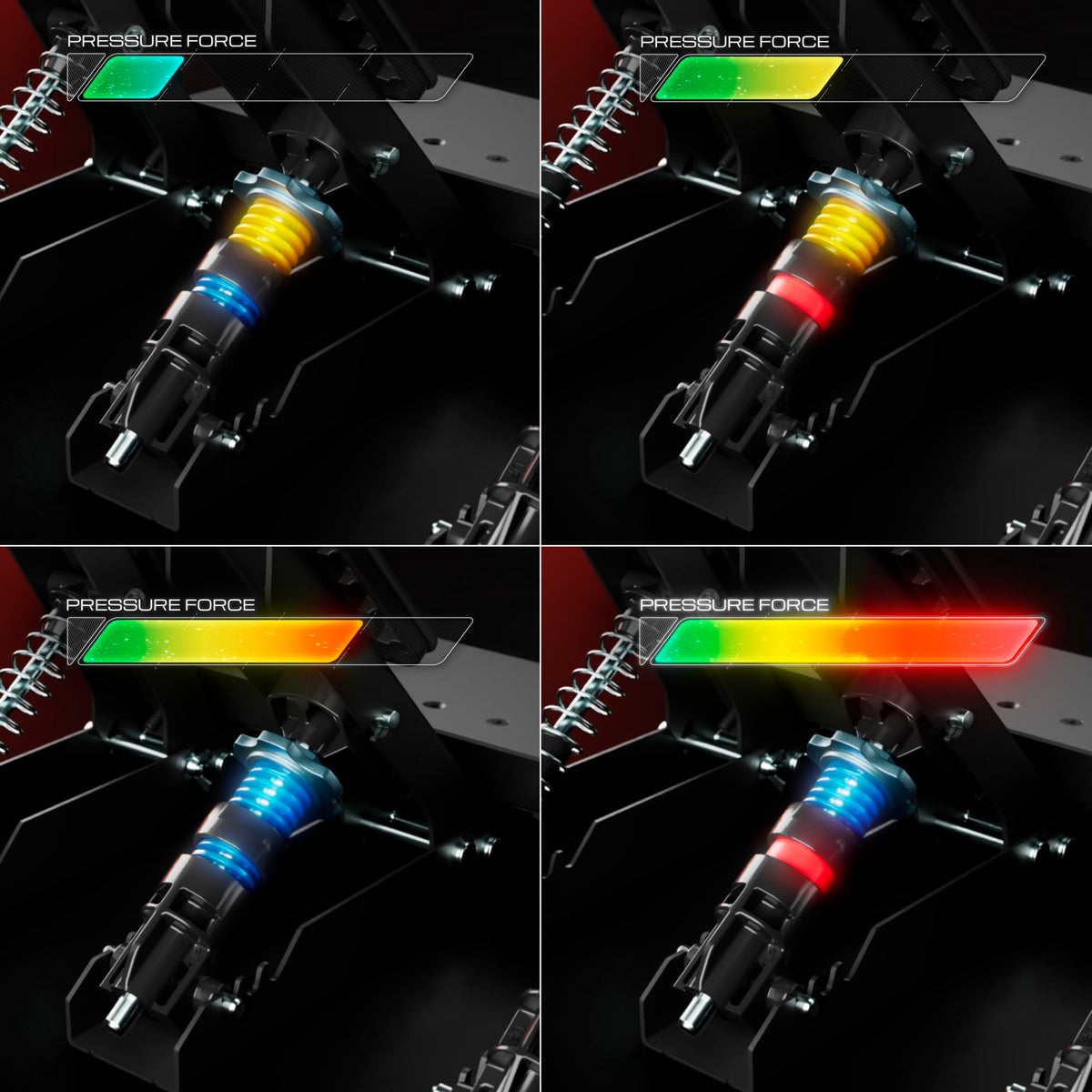

Adjustable Braking: Choose from four configurations using three springs and an elastomer buffer, with pressure force configurable from 55–220 lb / 25–100 kg. A preload dial allows fine adjustments of +/- 11 lb / 5 kg.
-
Software Settings: Adjust pedal dead zones and response curves using the T598 racing wheel's Race Dash screen or My Thrustmaster Panel software on PC.
-
Modular Design: Sturdy, 100% metal structure with adjustable pedal and pedal-head positions; the clutch pedal can be removed.
Specifications
-
Brand: Thrustmaster
-
Model: 4060384
-
Dimensions: 51 x 40.2 x 11.8 cm (20.1 x 15.8 x 4.6 in)
-
Weight: 5700 g (201.1 oz)
-
Colour: black
-
Compatibility: PS5, PS4, Xbox Series and Xbox One with Thrustmaster Force Feedback racing wheel bases (excluding T500); PC with all racing wheel bases via USB connection
-
Release Date: 6 May 2026
- EAN: 3362934004613
